Castle Creations Phoenix ICE 50 ESC

Speed Controllers/BEC > ESC > Castle Creations Phoenix ICE 50 ESC

Castle Creations Phoenix ICE 50 ESC

Click to see the Phoenix User Guide (1mb PDF) for more details on programmable options.

Phoenix Ice brings the ability torun at input voltages of up to 8S* (33.6) and use the built in switching BEC to output up to 5 amps of servo power all the way up to the 8S max*!

$ 84.95 Unavailable Back

Switching BEC
The Phoenix Ice switching BEC output is factory set to 5.0V. Users may use Castle Link to select their desired voltage between 5.0V and 7.0V, in 0.1V increments.

Data Logging

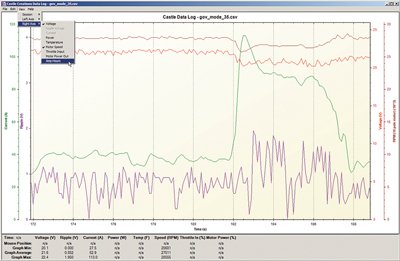

Ice brings another incredibly useful feature, extensive data logging capabilities. The controllers are able to measure and record many parameters at sample rates that you choose between 10 samples per second and 1 sample per second. Data points include:

Battery Voltage
Battery Ripple
Battery Current
Controller Temperature
Controller Input Throttle
Controller Motor Power Output
Motor RPM

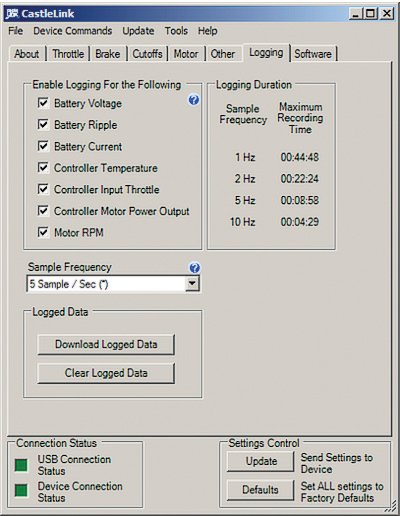

This data is stored directly in the controller and may be accessed once the run is over using the Castle Link USB adapter (sold separately) and Castle Link software (available free at castlecreations.com). The Max Log Size is 21,504 bytes, everything takes one byte except for motor rpm which takes two.

Logging 'Battery Current' at only a 1 sample / second - 358 minutes of logging time (almost 6 hrs)
Logging 'Motor RPM' at only 1 sample / second - 179 minutes of logging time
Logging everything at only 1 sample / second - 44 minutes of logging time
Logging everything at 10 samples / second - 4 minutes and 28 seconds

Length:
1.6” (40.6mm)
Width:
1.3” (33mm)
Height:
0.81” (20.6mm)
Weight:
1.22 oz* (34.6g*)
Max amps:
50 amps**
5 amp BEC
Max volts:
34 volts
8s LiPo
22 cells NiCad/NiMh
* Weight without wires
**Ratings determined with a 5mph airflow on the ESC.
