Castle Creations Phoenix-25 Brushless ESC CSEPHX25

The Phoenix-25 is the workhorse of many a modelers fleet, and a favorite choice of 3D foamy pilots. Still small and light enough for indoor and parkflyers, but capable enough for high performance wings with Speed 400 size brushless motors. Your Mega 16/15 series, Feigao and Himaxx 28mm motors, small and medium sized AXI motors, and Hacker B40 motors will all perform at their peak with the Phoenix-25.

$ 59.99 Available: 1 Back
Quantity:

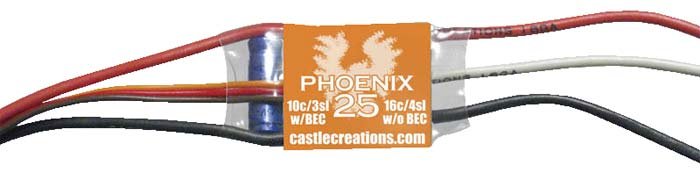

This is the Castle Creations Phoenix-25 amp Brushless Sensorless ESC.
   This speed control is specifically designed for Brushless application. NOT to be used with Brushed motors. Doing so will ruin ESC.

FEATURES: Extremely low resistance (.013 Ohm)
        High rate (11kHz) switching
        Up to 25A continuous current with proper air flow,
        35A surge
        Five to eight cells with four micro servos
        Up to ten cells with three micro servos
        16 cells max with BEC disabled
        Dynamic braking ensures folding props fold properly
     BEC (1.5A) provides power to receiver and servos-eliminates need for a separate receiver battery
         User programmable features:
      Low voltage cutoff
      Over-current protection
      Brake type
      Throttle range
      Timing advance
      Cutoff type
      Soft start Ramp Up
          Runs motor in forward or reverse
      Auto motor in cutoff with reset
      Safe Power ON arming program ensures motor won't
      accidentally turn ON
      Low torque soft start prevents damage to fragile
       gearboxes
      Auto Shut Down when signal is lost or radio interference
      becomes severe

INCLUDES: Instruction sheets
     Phoenix 25 ESC

REQUIRES: Soldering to motor and connector
     Soldering iron HCAR0775
     Solder WSDC4030
     Battery connector (specific to customer's connectors)

SPECS:  Length: 1.5" (37mm)
       Width:   1" (25.4mm)
       Height: 3/16" thick (5mm)
       Wire Length: 4" (102mm) motor ends
                5.5" (140mm) battery end
                7" (178mm) servo wire with Universal
                  Connecter

COMMENTS: Be sure to have correct polarity, incorrect polarity can damage the speed control unit
