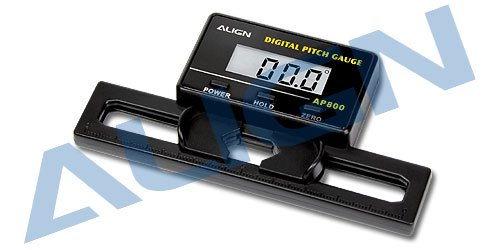

AP800 Digital Pitch Gauge HET80001

New Items! > New! > AP800 Digital Pitch Gauge HET80001

AP800 Digital Pitch Gauge HET80001

Developed by the R&D team in Align, the new AP800 digital pitch gauge is suitable for flybar and flybarless helicopters. Auto-detecting Horizontal level , with result displayed through high contrast LCD screen, providing a simple and precise way of measuring pitch angle.

$ 34.49 Available: 1 Back
Quantity:

Features:
●Auto-detecting Horizontal level.
●Uses backlighting LCD monitor.

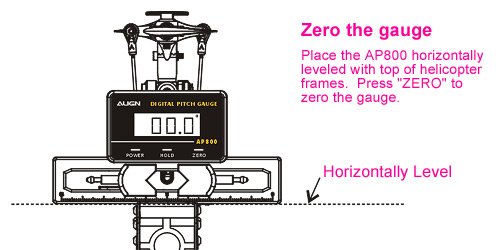

●Zero and Lock function.
●Detectable pitch range: -90° ~ 90°.
●Automatic screen rotation.
●Suitable for 200~800mm main blades.
●Build-in energy saving function. Power shuts down after 3 mins without any movement.

●Body Dimension 108x53.9x16mm
●Suitable blade width 20mm~74mm
●Detectable pitch range: ±90°
●Resolution: 0.1°
●Battery: 2X CR 2032 Lithium
●Weight:38g (including battery)
