DS650 Digital Servo HSD65001

●Ultra-speed servo for instant tail control reaction. (0.048sec/60 deg).
●12 Bits 4096 signal resolution for smooth movements.
●Ultra Performance Coreless Motor with fast reaction and low current.
●Hardened high strength superalloy gears that increase the lifetime.
●Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’s high efficiency.
●Supports digital & analog control signal.
●Great for a TRex 600/700 tail.

$ 75.99     Available: 1     Back

Quantity:


Specifications:

●Stall torque:4.0kg.cm(4.8V)
          5.0kg.cm(6.0V)
●Motion speed:0.058sec/60°(4.8V)
           0.048sec/60°(6.0V)
●Rating voltage:DC 4.8-6V
●Temperature range:-20°C~+60°C
●Dimension:40.3 x 20.1 x 36mm
●Weight:56g
*1520μs standard band

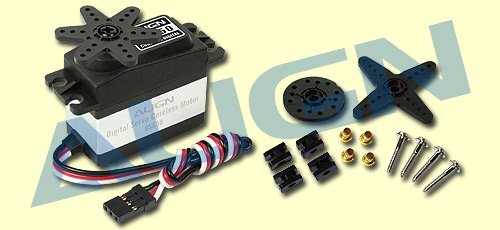

Accessories:

●Servo rudder piece x 3
●Set screw x 1
●Rubber damper x 4
●Brass grommet x 4
●Tapping screw for servo x 4
