Maxpro X6-Plus Charger 2-6S Lipo 150W/8A built in Servo Tester NEW!!

Li-po Batteries > Chargers > Maxpro X6-Plus Charger 2-6S Lipo 150W/8A built in Servo Tester NEW!!

Maxpro X6-Plus Charger 2-6S Lipo 150W/8A built in Servo Tester NEW!!

Supported batteries: 1~6 cells Li-Po, Li-Ion, Li-Mn (2~6 cells balance charging)
3x 2S or 2 x 3S simultaneous charge with optional adaptor
1~8 cells LiFePO4 (2~6 cells in balance charge)
1~18 cells NiMH, NiCd
1~12 cells (2~24V) Pb(SLA)

$ 109.95 Available: 1 Back
Add Multi-Battery Charging Adapter (2S/3S) MPR1009
Quantity:

Specifications:
Input power: 11~15V DC /15 Amp (at maximum charge rate)
Charge current: 0.1~8.0A (0.1A/step)
Discharger current: 0.1~3.0A (0.1A/step)
Max. charge power: 150Watt
Max. discharge power: 15Watt
Balance charge current: <400mA
Balance accuracy: <10mV
Voltage tolerance: 0.10%
Capacity display: 0~9999mAH
Supported batteries: 1~6 cells Li-Po, Li-Ion, Li-Mn (2~6 cells balance charging)
3x 2S or 2 x 3S simultaneous charge with optional adaptor
1~8 cells LiFePO4 (2~6 cells in balance charge)
1~18 cells NiMH, NiCd
1~12 cells (2~24V) Pb(SLA)
Temperature control: Automatic
PC connection: USB port
Additional functions: Servo test (Linear, Speed, Deadband)
Can be used as a variable voltage DC power supply (3.0~30V DC output)
Weight: 450g
Size (LxWxD) 145x100x40mm (5.71"x3.94"x1.57")

System Features:
High power, high current, high-performance power conversion circuitry. Maxpro X6-Plus uses advanced DC/DC converter technology with high output conversion efficiency
The X6-Plus can be used with four types of Lithium batteries (Li-Po, Li-lon, Li-FePO4, Li-Mn) and has a build-in balancer.
Optimized charging technique for NiMH/NiCd
Cooling FAN is controled automaticlly by internal temperature sensor and provides intelligent protection.

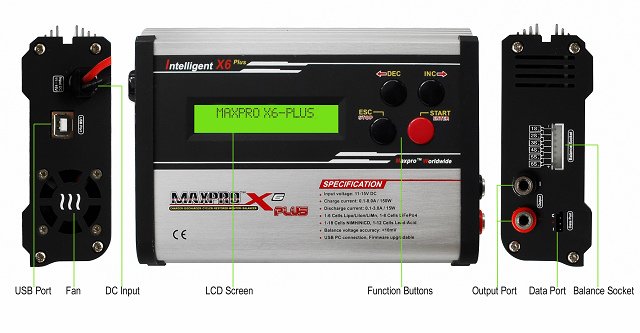

16*2 backlit LCD that displays the active mode, battery voltage, charge current, pack temperature, capacity (mAH added or removed) and charge/discharge times.
Programmable charge settings.
Li** batteries: normal charge, fast charge, balance, storage, discharge, charge/discharge cycle, and battery monitor.
NiMH/NiCd & Pb batteries: charge, discharge, charge/discharge cycle.
Perfect protection. The X6-Plus has protection for reversed polarity (input or output), low input voltage, battery temperature, charging capacity and battery voltage overrun.
Battery internal resistance measurement with PC monitor software.
DC power supply mode can provide 3.0~30V adjustable DC to meet your requirements.
Build-in servo tester. Movement, Speed and Deadband of servos can be tested.
Firmware upgradable via USB port. The charge/discharge data can be recorded & analyzed by PC monitor software & Battery analyzer software.

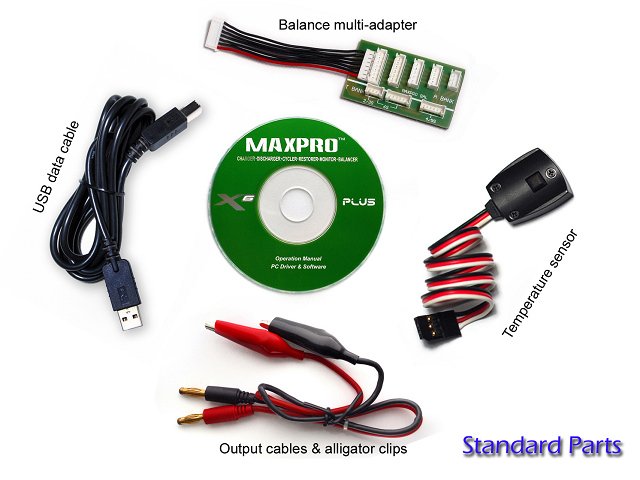

Standard items:
Maxpro X6-Plus charger with input cables & clips
One pair of output cables & alligator clips
One temperature sensor
One USB data cable
One balance multi-adapter
One CD (User's manual, PC monitor software, Battery Analyzer software inside)

Optional parts:
Multi-connector output cable
Multi-Battery Charging Adapter (3x2S/2x3S)
