CF Frame ESP 3G Combo Version Kit Includes:

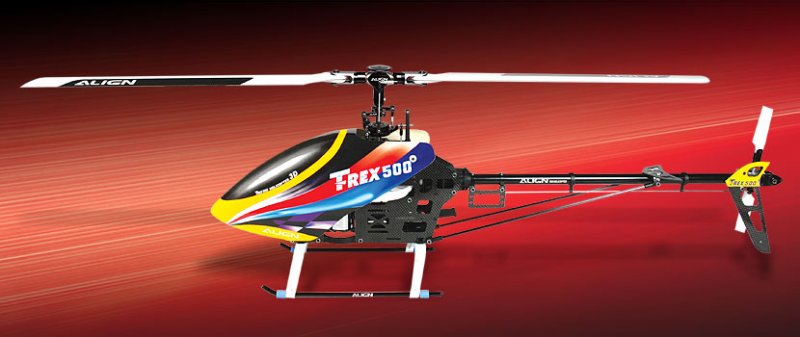

• T-Rex 500 CF Kit
• Align 3G programmable flybarless system
• Lightweight Main Frames 1.6mm
• 3 - DS510m digital servos
• 1 - DS520 Digital Tail Servo
• RCE-BL70G 70A Brushless ESC (Built-in 5-6V adjustable BEC)

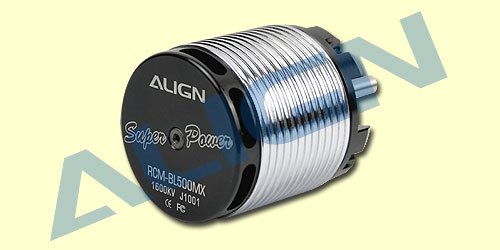

• 500MX Brushless motor (1600KV)
• All metal mixer and flybar arms
• High efficiency torque tube tail rotor drive
• 425mm Carbon Fiber Main Rotor Blades
• Motor pinion gear 13T(1) & 12T(1)

Features

• Align 3G Flybarless electronic stabilization system
•  Electric Power System
• Simple lightweight design provides an awesome flight performance and extreme 3D capability
• Rigid Carbon Fiber Frame design
• Beautiful Factory Painted Fiberglass Canopy
• Rotor head/tail with thrust bearings
• Direct to swash CCPM linkage
• Center of gravity battery tray designed close to the rotor head
• High efficiency torque tube drive tail rotor system
• Fully driven tail auto rotation system
• Metal tail servo mount boom

Specifications:
Length: 850mm
Height: 310mm
Main Blade Length: 425mm
Main Rotor Diameter: 970mm
Tail Rotor Diameter: 200mm
Motor Drive Gear: 12T/13T
Main Drive Gear: 162T
Autorotation Tail Drive Gear: 145T
Tail Drive Gear: 31T
Drive Gear Ratio: 1:13.5:4.68/1:12.46:4.68
Weight(w/o power system): 935g
Flying Weight: Approx 1700g

Radio transmitter and electronic equipment required for assembly:

• Transmitter(6-channel or more, helicopter system)
• Receiver(6-channel or more)
• Pitch gauge
• 22.2V 6S Li-Poly 2100~2500mAh battery
