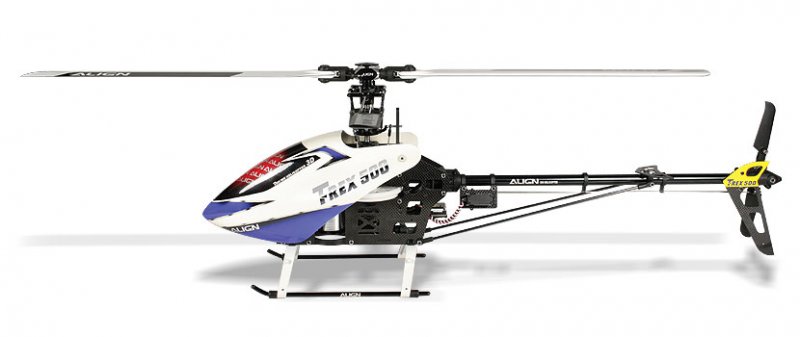

T-REX 500E Super Combo KX017014

●Features
1.Electric power system.
2.Simple and light weight design provides awesome flight performance and extreme 3D capability.
3.Rigid carbon fiber frame design.
4.Beautiful factory painted fiberglass canopy.
5.Rotor head/tail with thrust bearings.
6.Direct-to-swash CCPM linkage.
7.Center of gravity of Battery tray designed close to the rotor head.
8.Tail rotor drive belt system.
9.Fully driven tail auto rotation system.
10.Tail servo boom mount.

$ 444.99 Available: 1 Back
Quantity:

Specification:
●Length:840mm
●Height:310mm
●Main Blade Length:425mm
●Main Rotor Diameter:970mm
●Tail Rotor Diameter:200mm
●Motor Ponion Gear:13T
●Main Drive Gear:162T
●Autorotation Tail Drive Gear:145T
●Tail Drive Gear:31T
●Drive Gear Ratio:1:12.46:4.68
●Weight(w/o power system):980g
●Flying Weight:Approx 1700g
●Color carton:48.3x18.7x9.8cm
●Outer carton:58x50x42cm ,12sets/ctn

Accessories:
●T-REX 500E Kit Set X1 set
● 425D carbon fiber blades X1
●RCE-BL70G Brushless ESC X1
(Built-in 5-6V step-less adjustable BEC)
● 500MX Brushless motor X1
●Motor ponion gear 13T X1
●DS510 Digital Servo X3

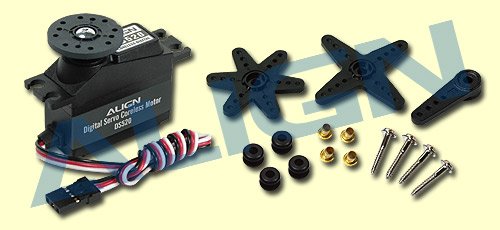

●DS520 Digital Servo X1

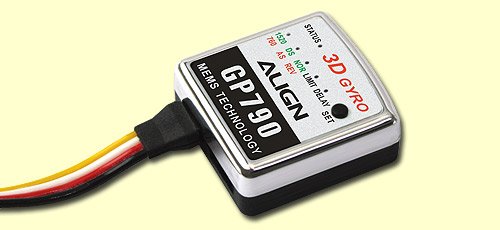

●GP790 Head lock gyro X1

Radio transmitter and electronic equipment required for assembly:
1.Transmitter(6-channel or more,helicopter system)
2.Receiver(6-channel or more)
3.Pitch gaugeX1
4.22.2V 6S Li-Po 2100~2500mAh batteryX1
